posted: 1 Jun 2007 10:19 from: Martin Wynne
click the date to link to this post click member name to view archived images |

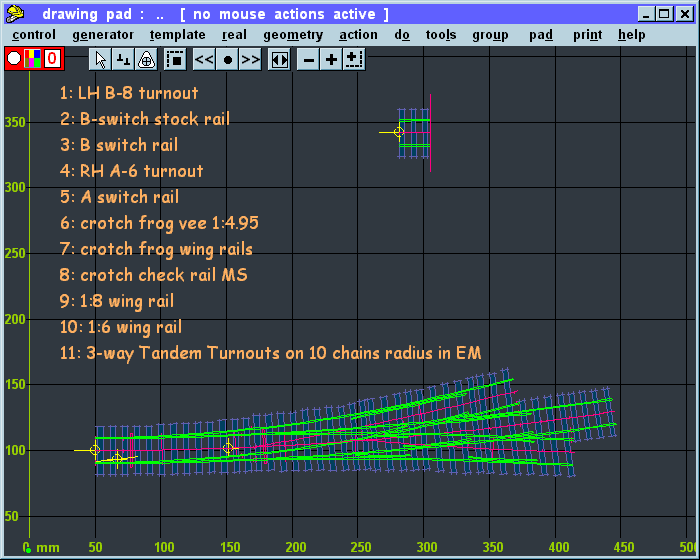

3-way tandem turnouts in EM: 3_way_tandem_em.png  Right-click on the link and select Save Target/Link As... Download: 3-way tandem turnouts in EM data file (for Templot version 078e or later). Notes: Example 3-way tandem turnouts on 10 chains radius in EM gauge. B-8 Left + A-6 Right, the middle V-crossing (crotch frog) is 1:4.95 RAM (1:5 CLM). (Intended for version 078e or later, but in 074b it will print ok with only minor discrepancies.) |
||
